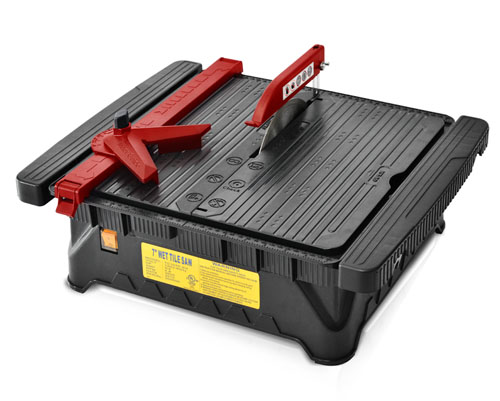

BRAVOPRODIGY 7" WET TILE SAWTC107P-EX

  • 560W hi-torque direct drive motor produces a constant cutting speed for ultra smooth cuts. Thermal overload protection to prevent overheating ø180 x 16mm diamond blade with continuous rim for extra clean cut

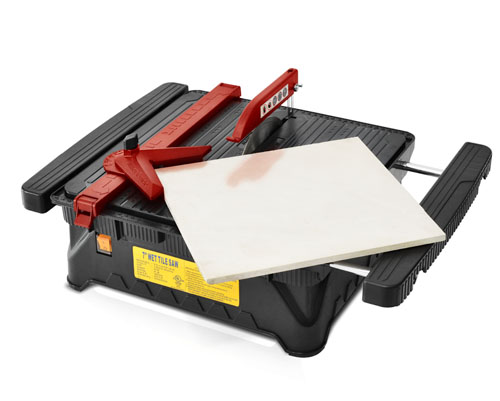

  • Adjustable double extension arms to support larger format tiles

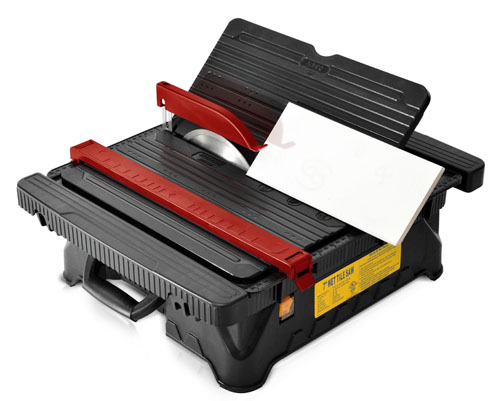

  • Cutting table tilts for mitre cuts
  • Integral ruler and adjustable rip guide for perfect straight cuts
  • Mitre guide for cutting tiles to any angle
  • Water cooling system with large reservoir
  • Transparent wheel guard with variable height adjustment
  • Moulded 3 pin plug with 1.5m cable
  • Blade carrier is reversible for both 16mm and 22mm bore sizes
  • Quick release splash guard for plunge cuts
Inquery
PREVPREV
BACK
  • Feature
  • Specifications

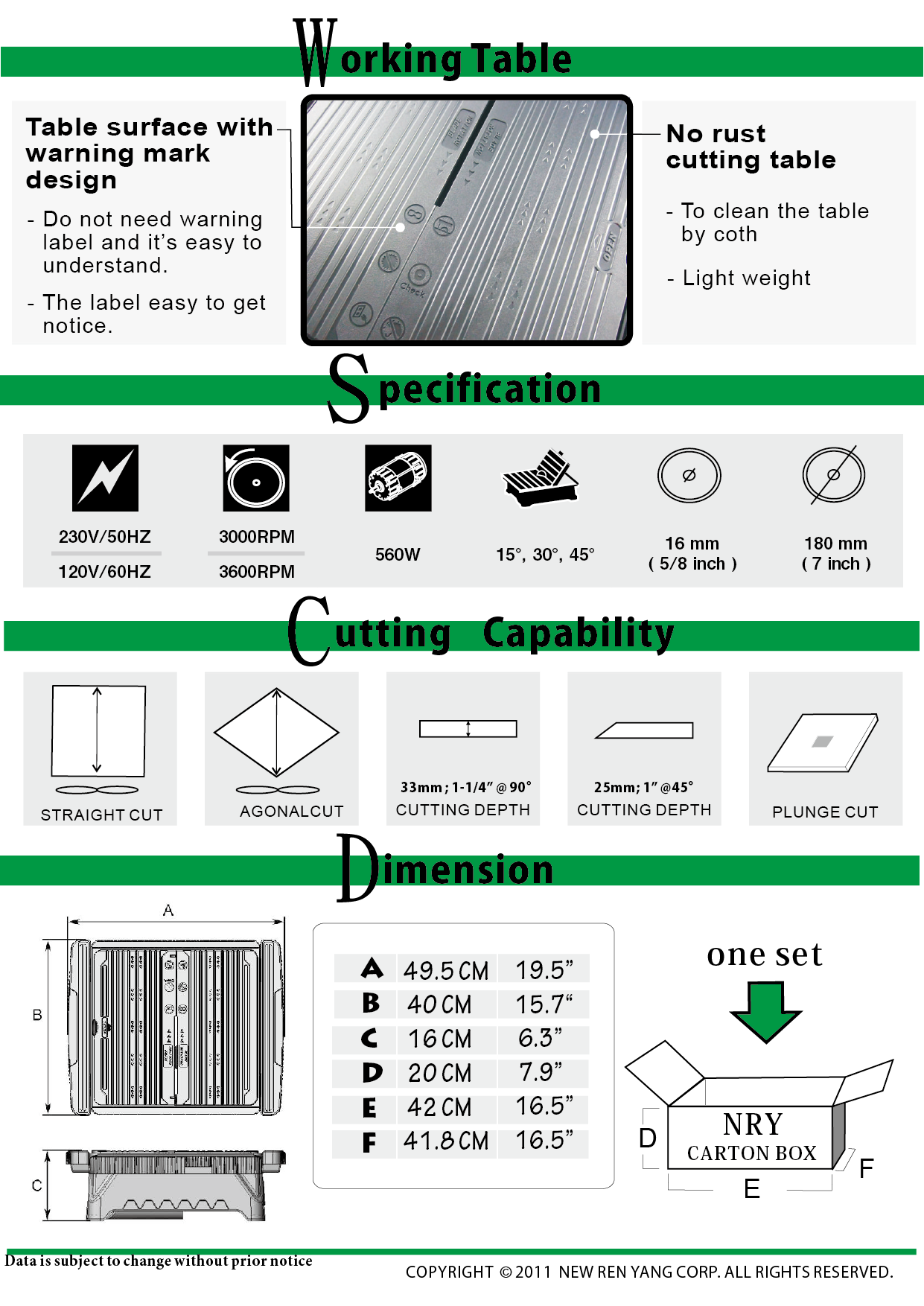

Model TC107P - EX
VOLTAGE  230V/50HZ 120V/60HZ
MOTOR  560W
RPM  3000  3600
BLADE CAPACITY  180mm  7"
ARBOR  16mm  5/8"
STRAIGHT CUT  UNLIMITED
DIAGONAL CUT  UNLIMITED
CUTTING DEPTH  33mm  1-1/4"
CUTTING DEPTH AT 45°  25mm  1"
ANGLE CUT  0° ~ 45°
BEVEL CUT  15°, 30°, 45°
