BE4036Description

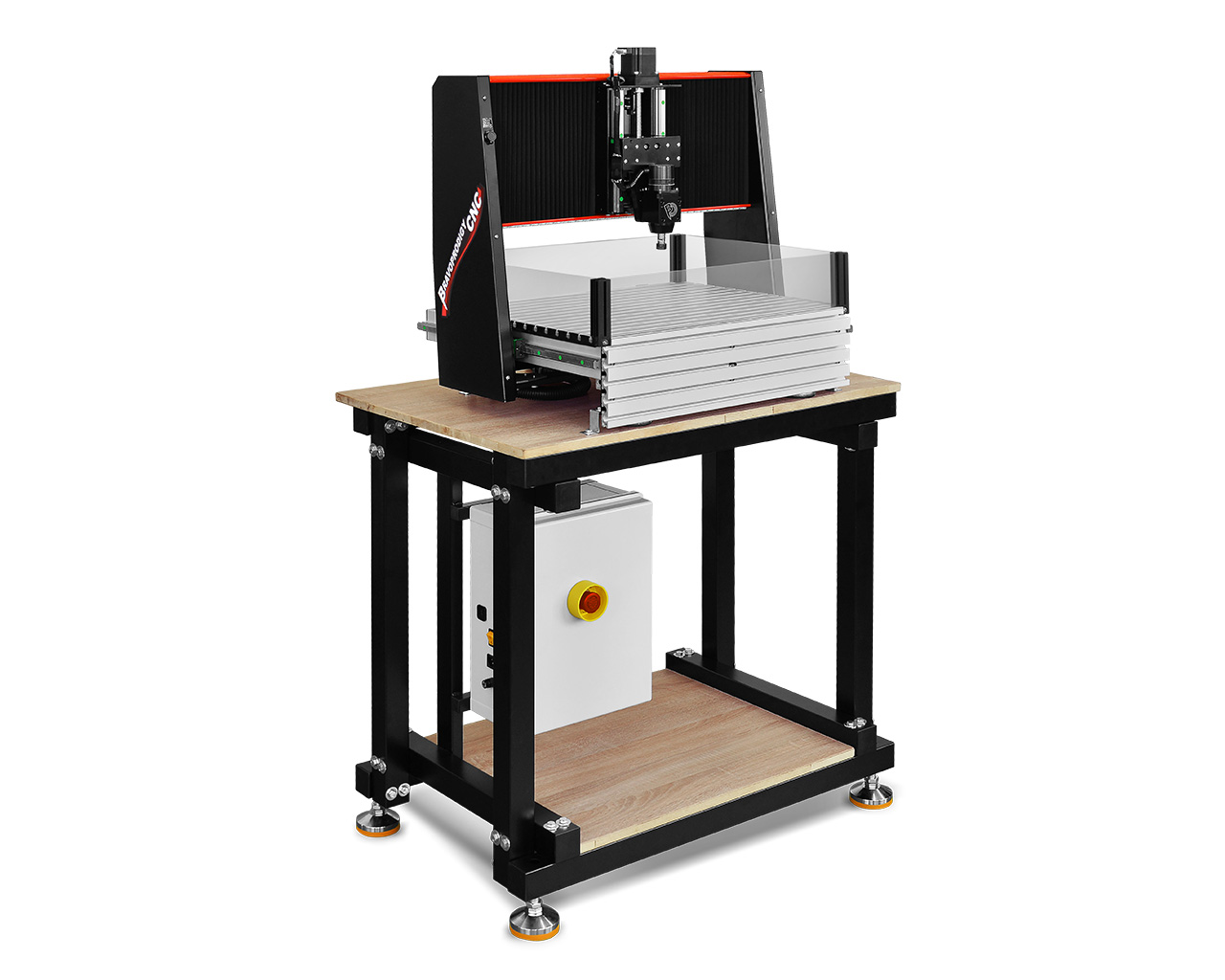

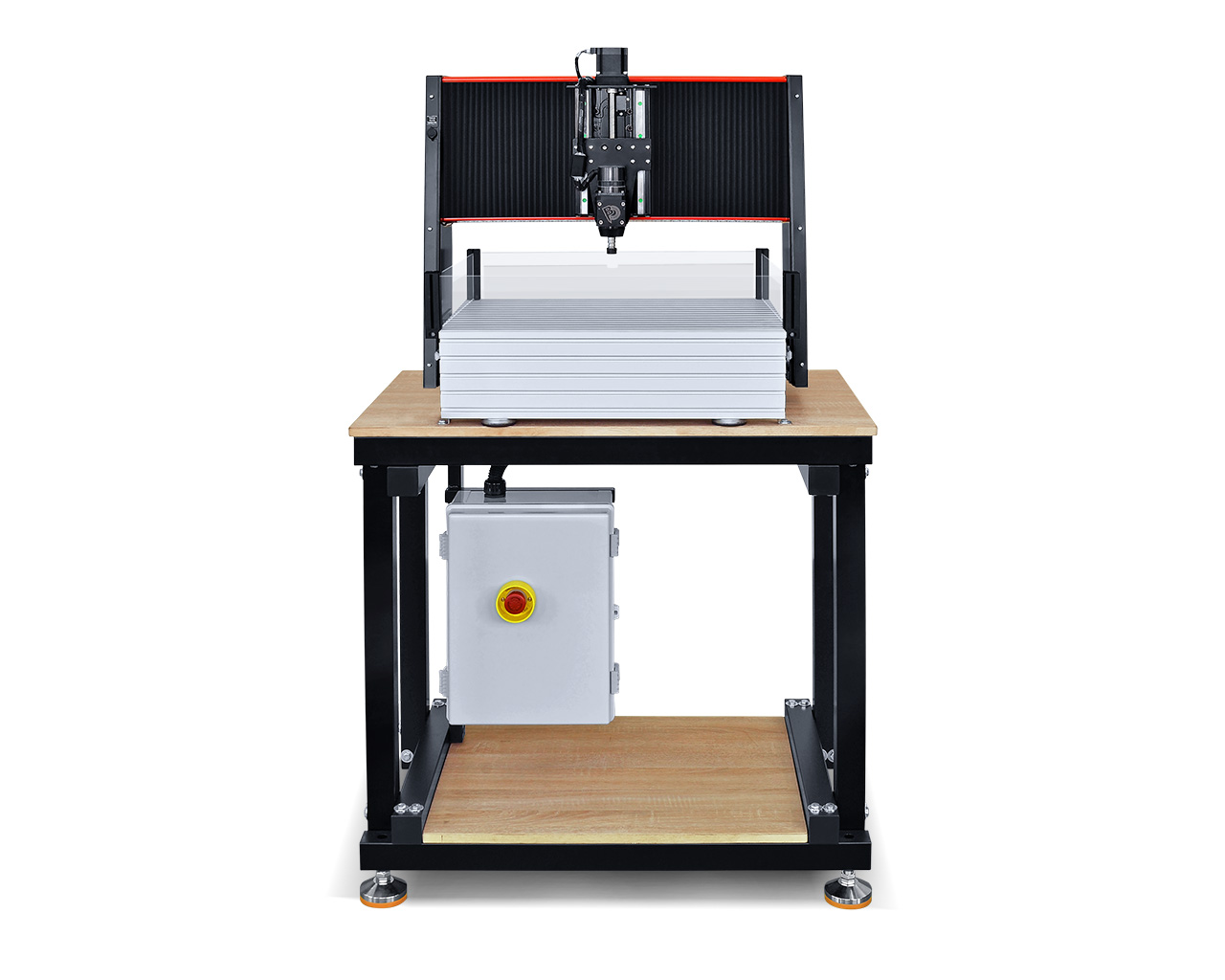

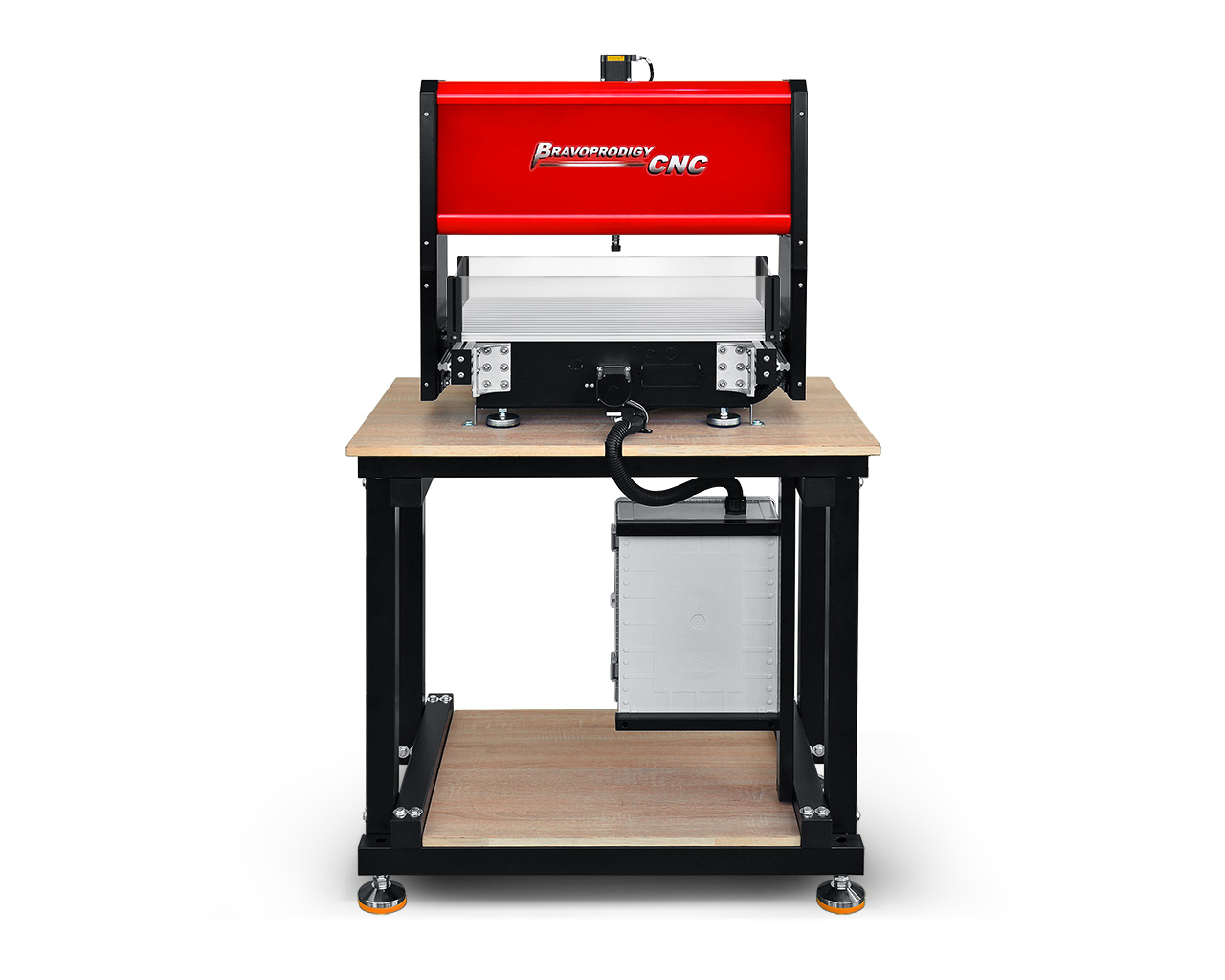

The desktop CNC router/engraving machine, a smaller gantry CNC model, can achieve the same quality in terms of mechanical resolution as the BE4060 / BE5070 model, which means you can get the same quality at lower costs with this machine.  All wiring is wrapped inside the case, making it safer and more pleasant. It is the absolute best choice for DIY customers. It is suitable to engrave with acrylic and ABS, plastic, wood, foam, wax model, styrofoam, EVA foam, epoxy, rubber, soft metals, PCB, etc... It is a must machine for beginners to operate of gantry CNC machining.

  • Feature
  • Specifications
  • Video

1. Spindle adopts brushless DC (BLDC) motor: mini, lightweight, high efficiency, low temperature,
no carbon brush friction, no need for carbon brush maintenance, with overload,
overheating, overvoltage protection, and longer motor lifetime.


2. With LED light, easy to observe art piece, and make it technological.

1. With Bravoprodigy exclusive photo engraving software EDIT and CNC control software.

2. Vivid interface, easy to learn, and see instant preview during engraving and able to modify operation. Users can control the machine by using a mouse keyboard and controller as long as to use the USB cable to connect.

3. Membership: free charge, enjoy professional consulting service and free resources such as gallery and so on.

1. A highly compatible control system that supports other CAM software.
2. It can record the last 10 project records, including file name, feedrate, spindle speed, and duration of using the machine.
3. Users can see the duration of operating the spindle.
4. Users can determine the line to continue the unfinished work from the last point on the same workpiece, which can save the user’s time and materials.
5. It can record the last reference point, to avoid power outage, and you can track the last reference point after power’s back.
6. Users can manually control the action of three axes and operate spindle.
7. The spindle can adjust RPM according to the different materials for better engraving results.



1. Open working table, user can engrave on longer material.
2. With ER-11collet chuck set able to fit with smaller diameters tool bits.
3. Modular function, easy to repair and maintain.
4. All cables wrapped inside the case, not only good looking but also safety.
5. The gantry design of the Y-axis makes the woking table more stable.



1. Including clamps (Toothed plate) which can adjust the height.
2. A reusable silicone mat, easy to engrave acrylic, ABS photos, etc...
3. Including controller, easy to move three axes when setting the working point.
4. The machine communication method uses a USB cable to connect the computer easily and quickly.

1. Three axes include the limit switches to prevent a collision.
2. Including stop protection when opening the cover.
3. Multiple protective mechanisms (such as overload protection, power supply, and fuse) to protect circuit board and machine from damage.
4. Certification of CE and CUL.


Model BE4036
Table Size X 554 x Y 600 mm ( 21.8 × 23.5 inches )
Table Load Weight Max. 15 kgs ( 33.1 lbs )
Engraving Area X 410 x Y 460 x Z 70 mm (16 × 18 × 2.7 inches )
Max.Engraving Speed 2500 mm/min ( 98 inches/min )
Engraving Material Plastic (ABS, Acrylic), Wood, Foam, Styrene foam, Modeling Wax, Epoxy tooling Board...etc
Software Resolution 0.02mm (0.001 inch)
Mechanical Resolution 0.02mm (0.001 inch)
Spindle Motor 200W Brushless DC Motor
Spindle Speed

The spindle speed is adjustable.
Also, the maximum spindle speed is 20,000 RPM.

Tool Diameter

ER11 Collet: 3, 4, 6 mm

Interface USB
Power Supply 100~120V 50/60HZ
Output: DC24V 8.8 A
200~240V 50/60HZ
Output: DC24V 8.8 A
Power Consumption 4.0 A 2.0 A
Operating Noise Level  Stand by 39.6 dB(A)
NO-loading operation less than 66 dB(A)
Machine Size

640 x 620 x 430 mm
( 25.1× 24.4 × 17 inches )

Net Weight 44 kgs ( 97 lbs )
Operating Environment temperatures 5~40°C (41~104°F) humidity 35~80%
